8 AWG 8 Gauge PV Solar Connectors for Solar Panel Extension Cable Wire
$11.47
Shipping calculated at checkout.
Solar Connectors are the industry standard for connecting photovoltaic panels for safe operation. The connectors are specially designed with a watertight seal (if installed with the correct cable) and coated with a UV resistant coating. Our solar connectors feature a 'male' and 'female' end for straightforward installation.

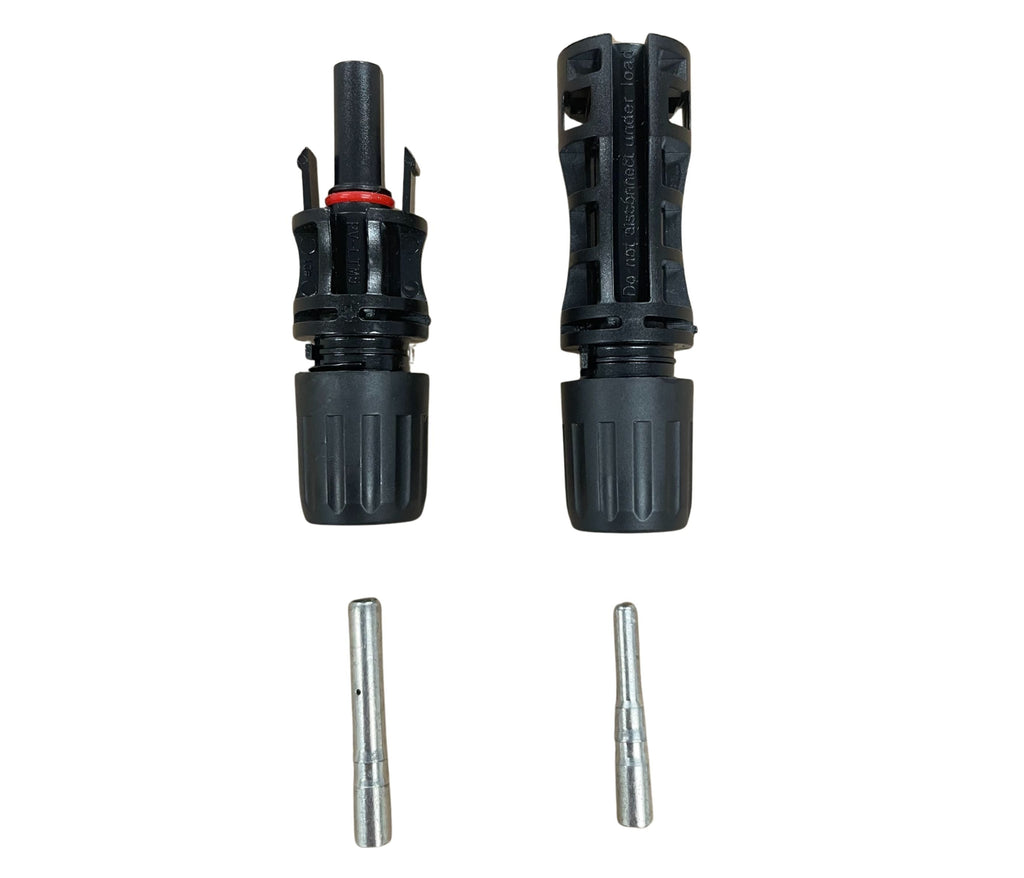

- Includes 1 piece male solar connector and 1 piece female solar connector
- Compatible with all solar connectors
- Designed for outdoor use on solar panel systems
- Waterproof and dustproof

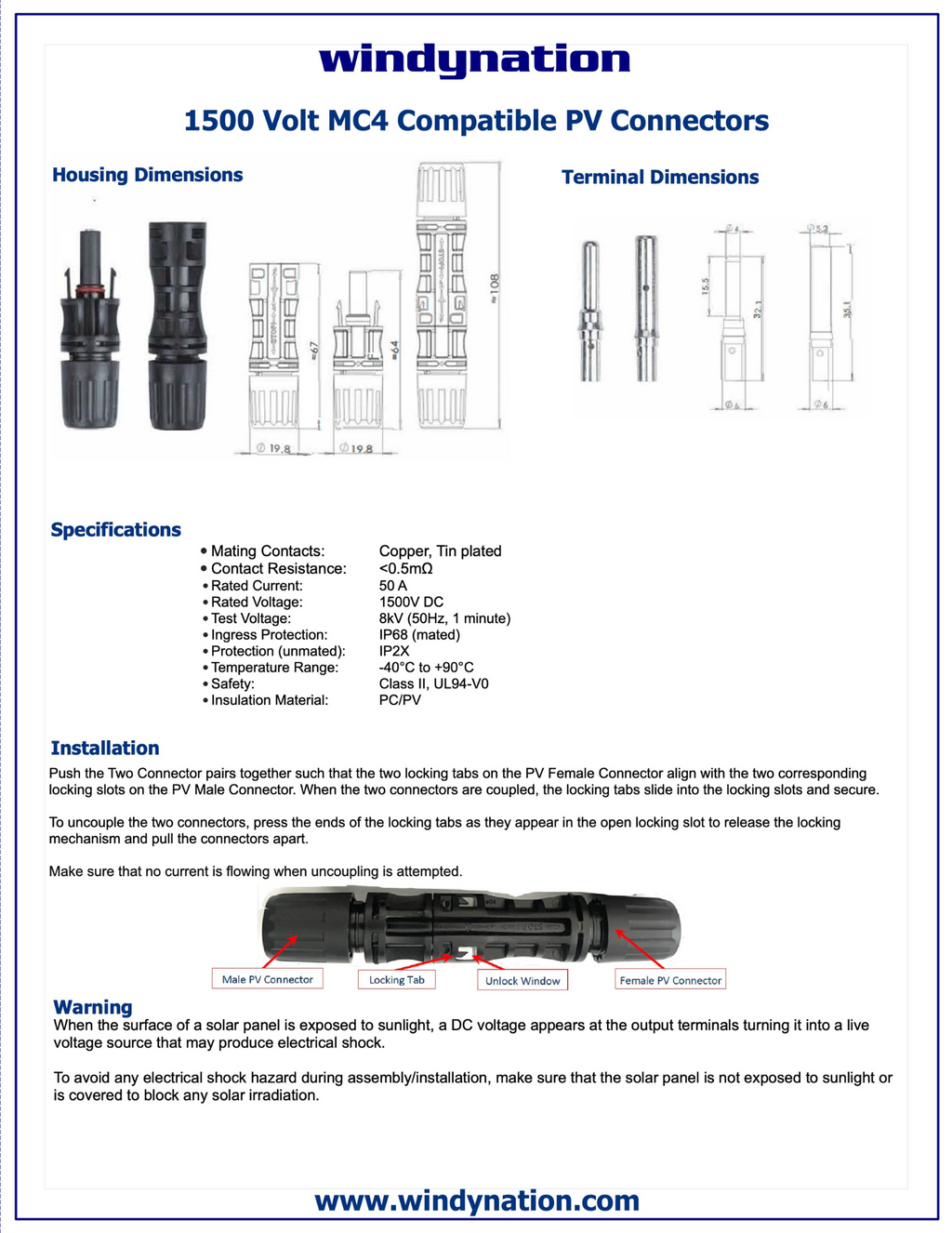

Technical Specifications
| Rated Current | 50A |
| Maximum Voltage | 1500 VDC (600 VDC UL) |
| Protection Class | Class II |
| Contact Resistance | < 0.5 milli ohms |
| Temperature Range | -40C to +90C |
| Protection Degree | IP68 (mated) |
| Wire Size Range | 8 AWG |
| Insulation Material | PV/PC |
| Flame Class | UL94-VO, UL94-VA |
| Contact Material | Silver Plated Copper |
| Certifications | TUV |
